JPA Directionalities

JPA - Unidirectional vs. Bidirectional Relationships

In JPA, the difference between unidirectional and bidirectional OneToMany associations lies in how the entities reference each other. In a unidirectional relationship, only one entity knows about the relationship, while in a bidirectional relationship, both entities are aware of the relationship.

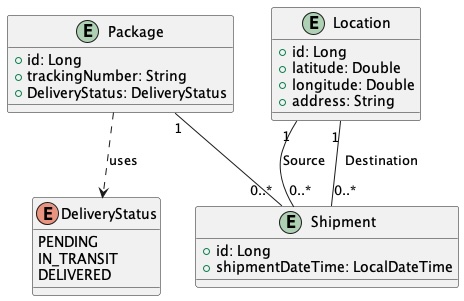

Let’s take the Package and Shipment example and explore both approaches. The example is taken from this Class Diagram:

Class Diagram

1. Unidirectional One-to-Many Relationship

In a unidirectional OneToMany relationship, only the Package entity is aware of the relationship. The Shipment entity doesn’t have any reference back to Package.

Code Example (Unidirectional)

Package Entity:

import jakarta.persistence.*;
import java.util.List;

@Entity
public class Package {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    private String trackingNumber;

    @OneToMany(cascade = CascadeType.ALL)
    @JoinColumn(name = "package_id") // Adds a foreign key (package_id) to the Shipment table
    private List<Shipment> shipments;

    // Constructors, Getters, and Setters
    public Package() {}

    public Package(String trackingNumber) {
        this.trackingNumber = trackingNumber;
    }

    public Long getId() {
        return id;
    }

    public String getTrackingNumber() {
        return trackingNumber;
    }

    public List<Shipment> getShipments() {
        return shipments;
    }

    public void setShipments(List<Shipment> shipments) {
        this.shipments = shipments;
    }
}

Shipment Entity:

import jakarta.persistence.*;

@Entity
public class Shipment {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    private String description;

    // Constructors, Getters, and Setters
    public Shipment() {}

    public Shipment(String description) {
        this.description = description;
    }

    public Long getId() {
        return id;
    }

    public String getDescription() {
        return description;
    }
}

Key Points of Unidirectional

The @JoinColumn(name = "package_id") annotation in the Package entity places a foreign key (package_id) in the Shipment table, creating the association.
CascadeType.ALL ensures that when a Package is persisted, updated, or removed, the related Shipment entities are also persisted or removed.
The Shipment entity does not have a reference to the Package entity, making this relationship unidirectional.

Table Structure

The Shipment table will have a package_id foreign key column that links to the Package table.

2. Bidirectional One-to-Many Relationship

In a bidirectional OneToMany relationship, both Package and Shipment are aware of the relationship. The Package entity maintains a collection of Shipments, and the Shipment entity has a reference back to its owning Package.

Code Example (Bidirectional)

Package Entity:

import jakarta.persistence.*;
import java.util.List;

@Entity
public class Package {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    private String trackingNumber;

    @OneToMany(mappedBy = "pkg", cascade = CascadeType.ALL, orphanRemoval = true)
    private List<Shipment> shipments;

    // Constructors, Getters, and Setters
    public Package() {}

    public Package(String trackingNumber) {
        this.trackingNumber = trackingNumber;
    }

    public Long getId() {
        return id;
    }

    public String getTrackingNumber() {
        return trackingNumber;
    }

    public List<Shipment> getShipments() {
        return shipments;
    }

    public void setShipments(List<Shipment> shipments) {
        this.shipments = shipments;
        for (Shipment shipment : shipments) {
            shipment.setPkg(this);  // Maintain the bidirectional link
        }
    }
}

Shipment Entity:

import jakarta.persistence.*;

@Entity
public class Shipment {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    private String description;

    @ManyToOne
    @JoinColumn(name = "package_id", nullable = false) // Foreign key column in Shipment table
    private Package pkg;

    // Constructors, Getters, and Setters
    public Shipment() {}

    public Shipment(String description) {
        this.description = description;
    }

    public Long getId() {
        return id;
    }

    public String getDescription() {
        return description;
    }

    public Package getPkg() {
        return pkg;
    }

    public void setPkg(Package pkg) {
        this.pkg = pkg;
    }
}

Key Points of Bidirectional

The @OneToMany(mappedBy = "pkg") annotation in the Package entity makes this a bidirectional relationship, meaning the Shipment entity refers back to the Package via the pkg field.
The mappedBy attribute indicates that the Shipment entity owns the relationship by having a ManyToOne relationship with Package.
In Shipment, the @ManyToOne annotation with the @JoinColumn(name = "package_id") defines the foreign key.
CascadeType.ALL ensures cascading actions between Package and its Shipments, and orphanRemoval = true ensures that if a shipment is removed from the Package, it is also deleted from the database.

Table Structure

The Shipment table will have a package_id foreign key column that links to the Package table, just like in the unidirectional relationship.

Maintaining the Relationship

You need to ensure that when adding or removing Shipment entities in a Package, the link is maintained on both sides by calling shipment.setPkg(this) when setting shipments on a package.

Summary:

Unidirectional One-to-Many

The owning side is only in the Package entity.
No reference to the Package from the Shipment entity.
Simpler to implement if you don’t need back-references.

Bidirectional One-to-Many

Both Package and Shipment are aware of the relationship.
The Package has a collection of Shipments, and each Shipment references its Package.
More powerful and useful when you need to navigate the relationship from both sides.

Each type of association has its use case:

Unidirectional is simpler and more lightweight but limits the ability to navigate relationships from both entities.
Bidirectional provides better navigation and flexibility but requires more careful management of both sides of the relationship.

Let me know if you need further clarifications or examples!
